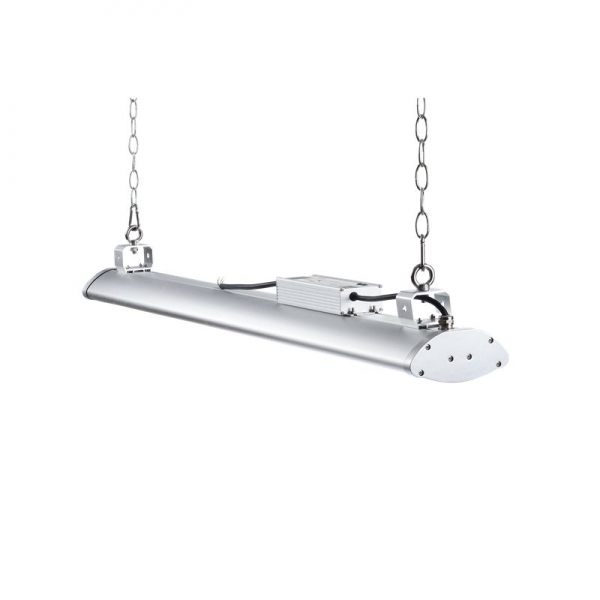

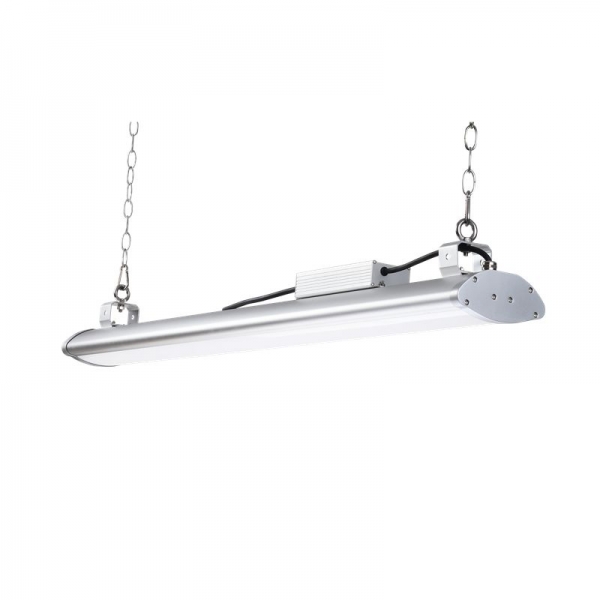

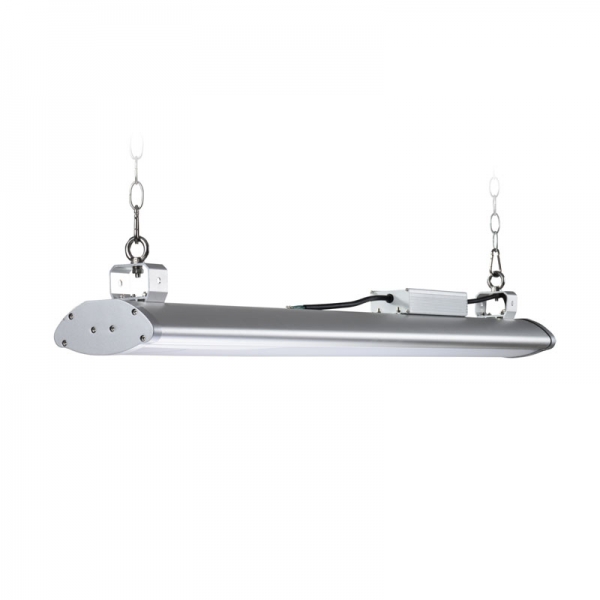

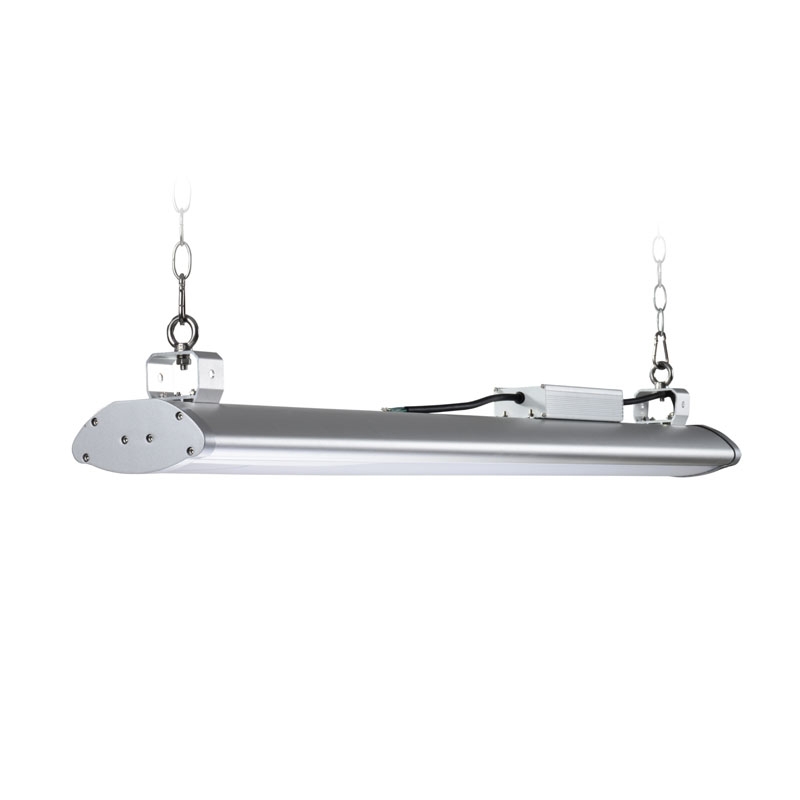

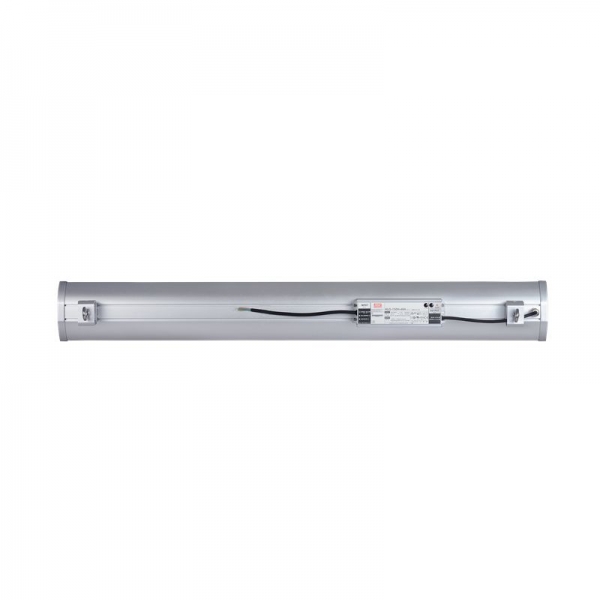

Warehouse Linear LED High Bay Light

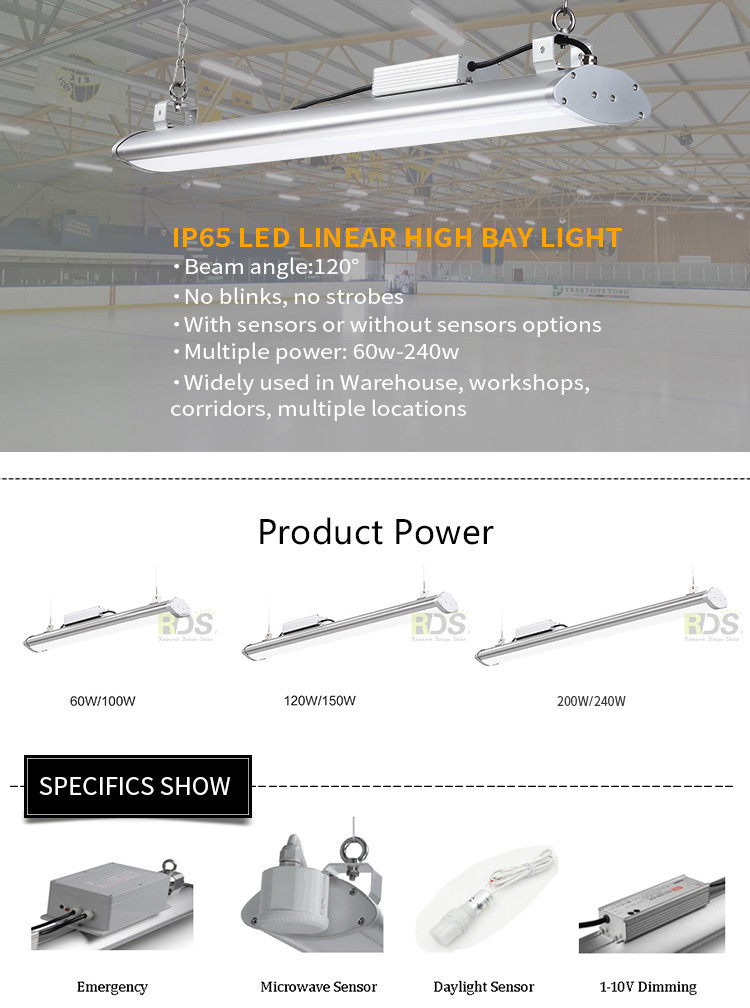

IP65 High Bay Light

< >

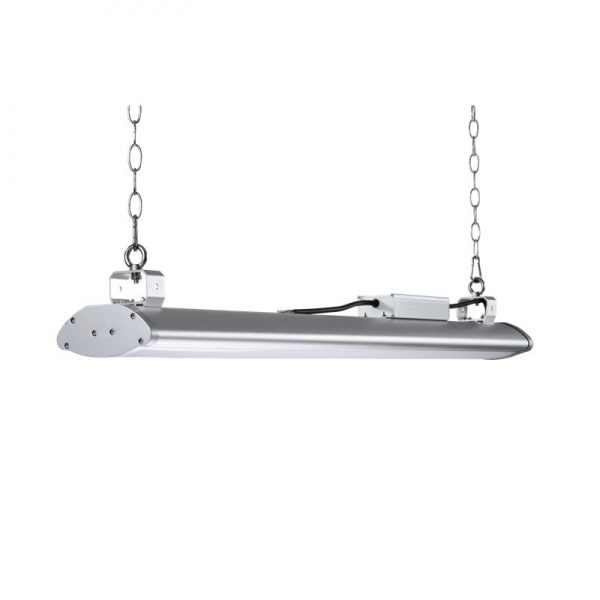

HB-I Series 240W (120-277V/277-480V)

High Bay LED Lights produce a bright, even light that won‘t fade over time. They feature a 50% energy savings over linear fluorescent high bays and 60%.

Model: RDS-HB-I-240W
Power: 240W

Lumen: 38400lm /45600lm

Efficacy: 160lm/w or 190lm/w

Dimensions:1500*150*67mm

Voltage: AC120-277v & 277-480V

Selectable CCT: 4000K/5000K

Dimming: 0-10V

Certifications: CE ROHS SAA

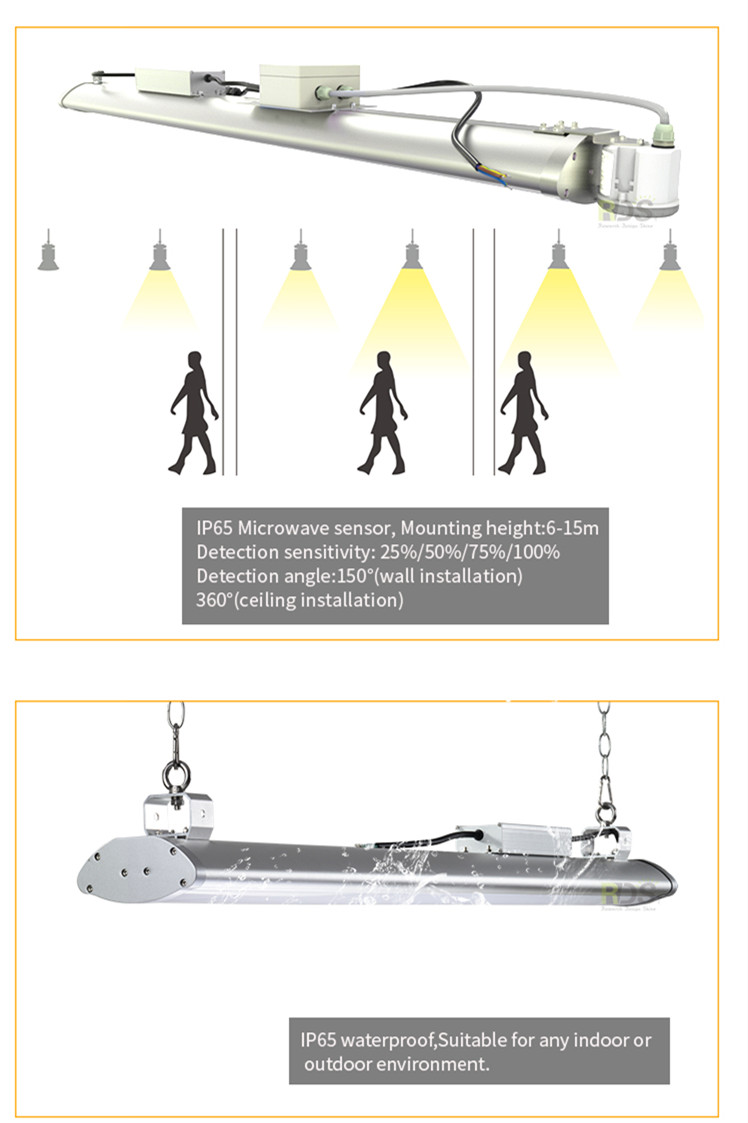

Optional: Microwave sensor,Emergency

Warranty: 5 years

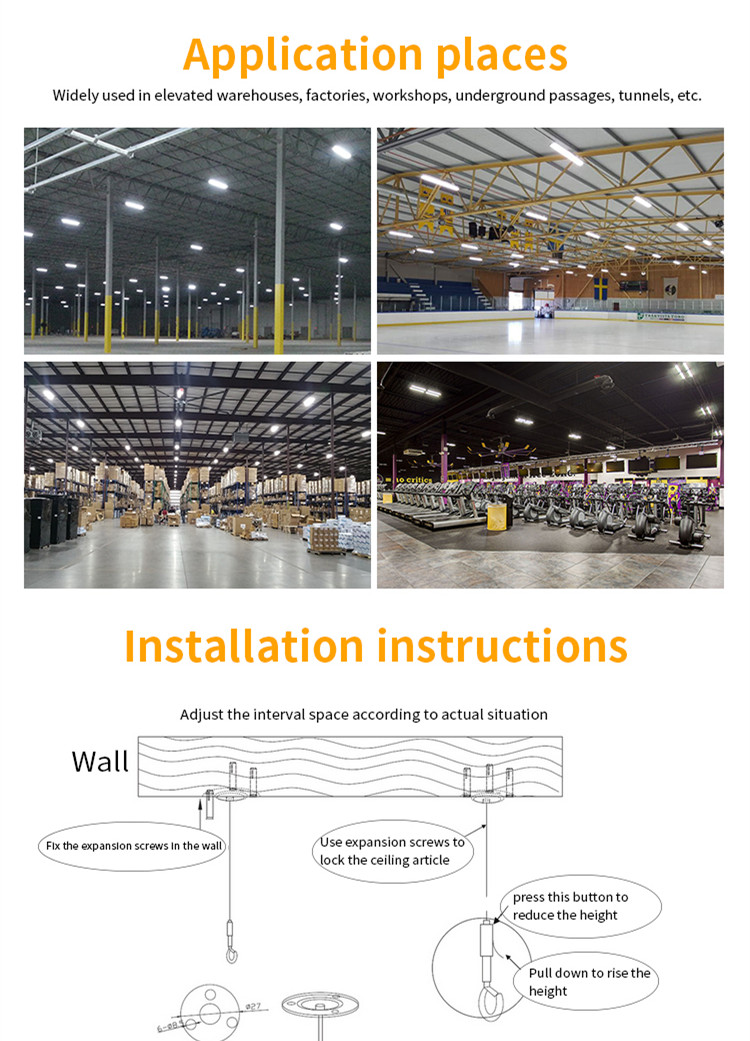

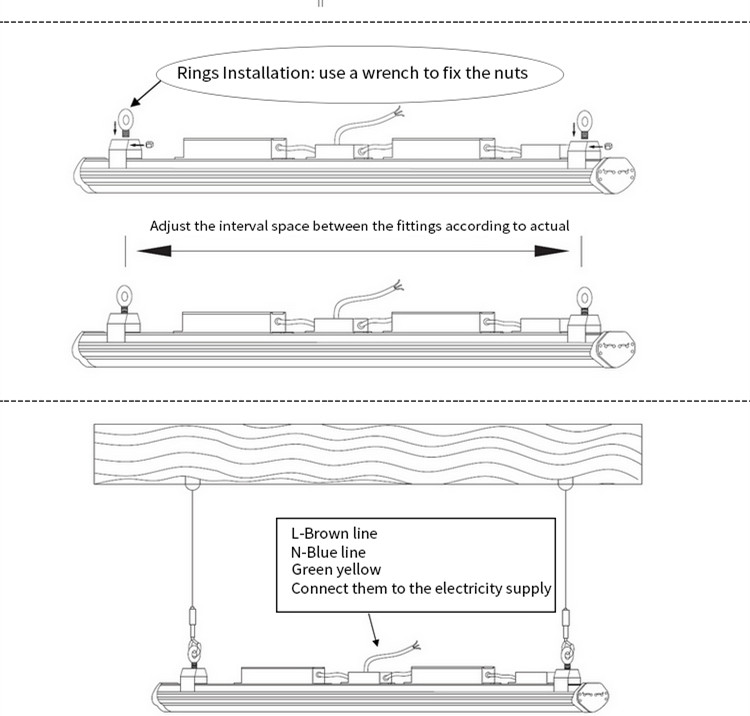

Data Sheet Installation Inquire Online

Model	Input voltage	Power	Luminance Efficacy	Size(mm)	Carton Size(mm)	GW/ 2PCS
RDS-LHB-I-100W	90-305V 277-480V	100W	160lm & 140lm	60013356mm	672221cm	6.76kg
RDS-LHB-I-150W	90-305V 277-480V	150W	160lm & 140lm	120013356mm	1272221cm	8.1kg
RDS-LHB-I-200W	90-305V 277-480V	200w	160lm & 140lm	150013356mm	1662221cm	10.1kg
RDS-LHB-I-240W	90-305V 277-480V	240w	160lm & 140lm	150015067mm	1662421cm	15.3kg
